Kubernetes Kubelet Metrics

Collector node, pod, container, and volume metrics from Kubernetes nodes

Supported Platforms

PlatformMetricsLogsTraces
Kubernetes DaemonSet
OpenShift 4 DaemonSet

Configuration Table

ParameterTypeDefaultDescription
cluster_name*stringThe cluster name which will be added as the k8s.cluster.name resource attribute.
metric_groupsenumsallMetric groups to collector. Supported options include node, pod, container, and volume.
collection_intervalint60sHow often (seconds) to scrape for metrics.

*required field

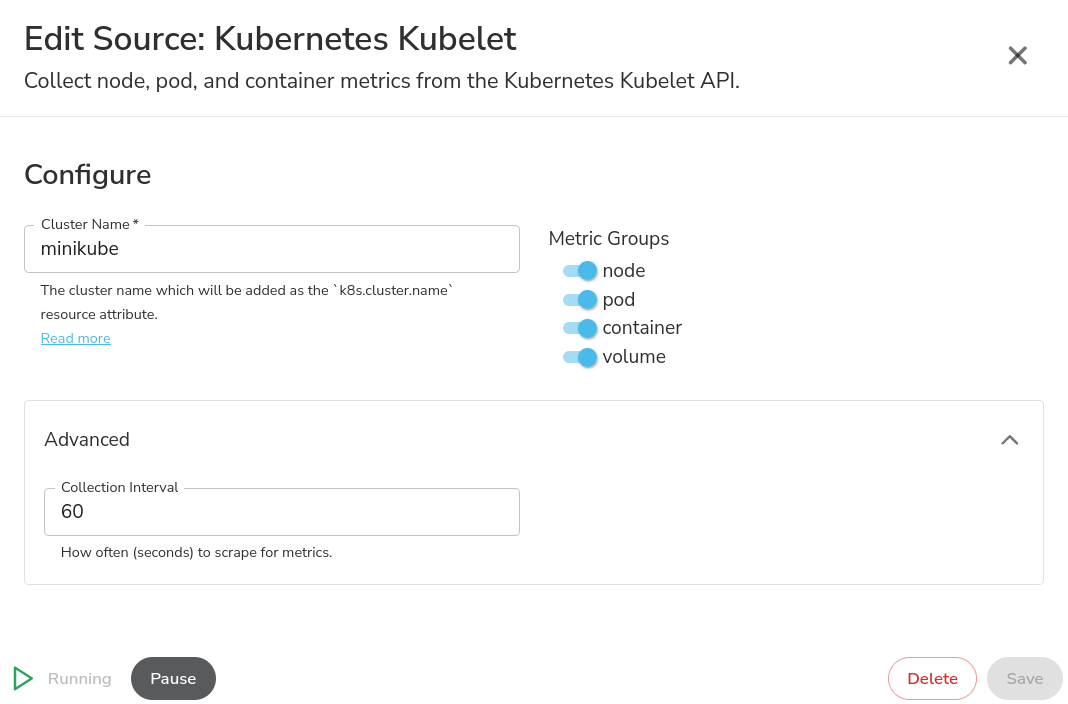

Example Configuration

The Kubernetes Kubelet metrics source has one required parameter:

  • Cluster Name: The name of the cluster, which will be inserted as the k8s.cluster.name resource attribute

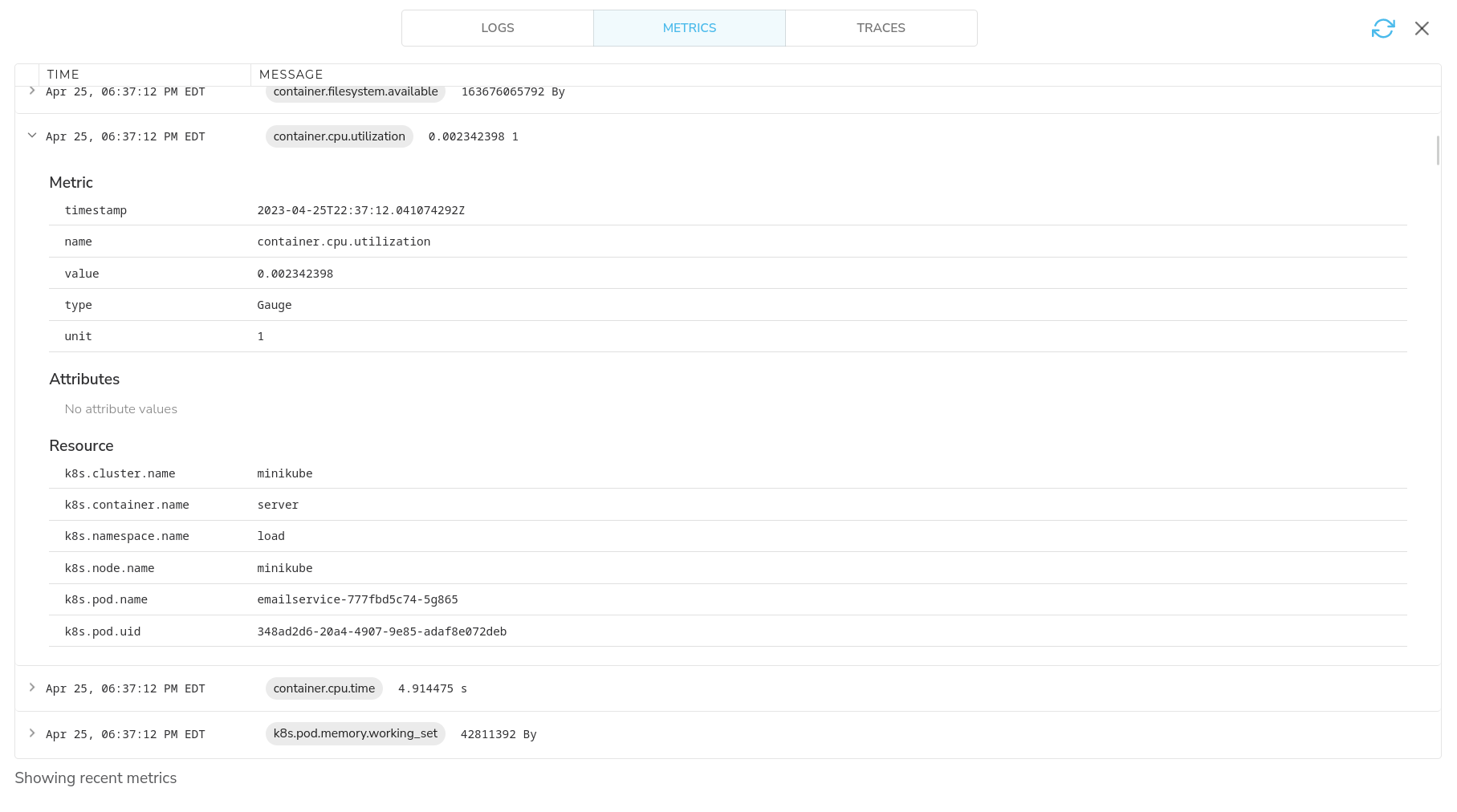

Once running on an agent, metrics will look like this:
