Splunk HTTP Event Collector (HEC)

Description

The Splunk HTTP Event Collector source can be used to receive events (logs) from applications which emit events in the Splunk HEC format. Events are converted to OTLP format and can be sent on to any destination.

The HEC source can be combined with the Splunk HEC Destination. This allows BindPlane's agent to sit in the middle of a Splunk pipeline. Giving you the ability to leverage BindPlane's processing capabilities.

Supported Platforms

Platform	Metrics	Logs	Traces
Linux		✓
Windows		✓
macOS		✓

Configuration Table

Parameter	Type	Default	Description
listen_port	`int`	8888	Port to listen on.
listen_ip	`string`	"0.0.0.0"	IP Address to listen on.
access_token_passthrough	`string`	false	Whether to preserve incoming access token (Splunk header value) as "com.splunk.hec.access_token" metric resource label.
enable_tls	`bool`	false	Whether or not to use TLS.
tls_certificate_path	`string`		Path to the TLS cert to use for TLS required connections.
tls_private_key_path	`string`		Path to the TLS key to use for TLS required connections.

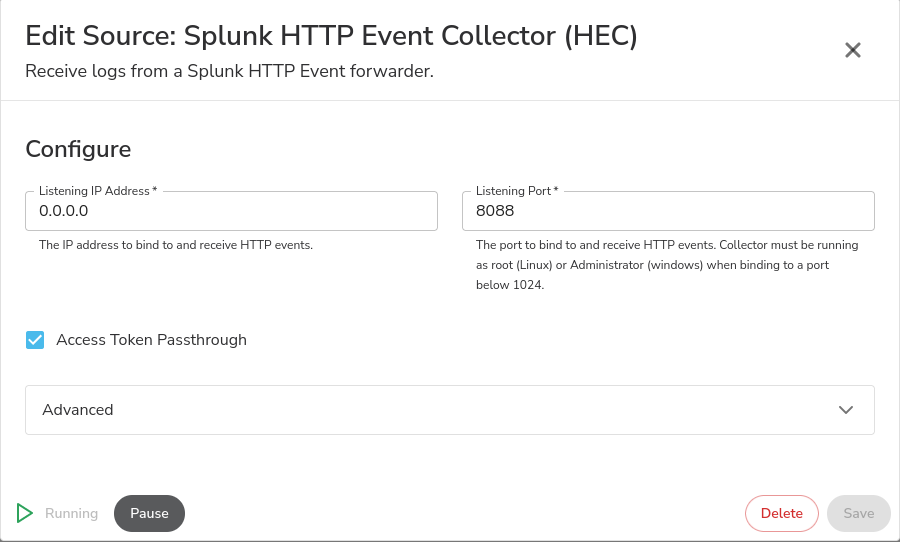

Example Configuration

The HEC source type has two required parameters:

Listen IP Address
Listening Port

It is recommended to enable the Access Token Passthrough option if you wish to preserve the Splunk access token header as a resource attribute (com.splunk_hec.access_token.

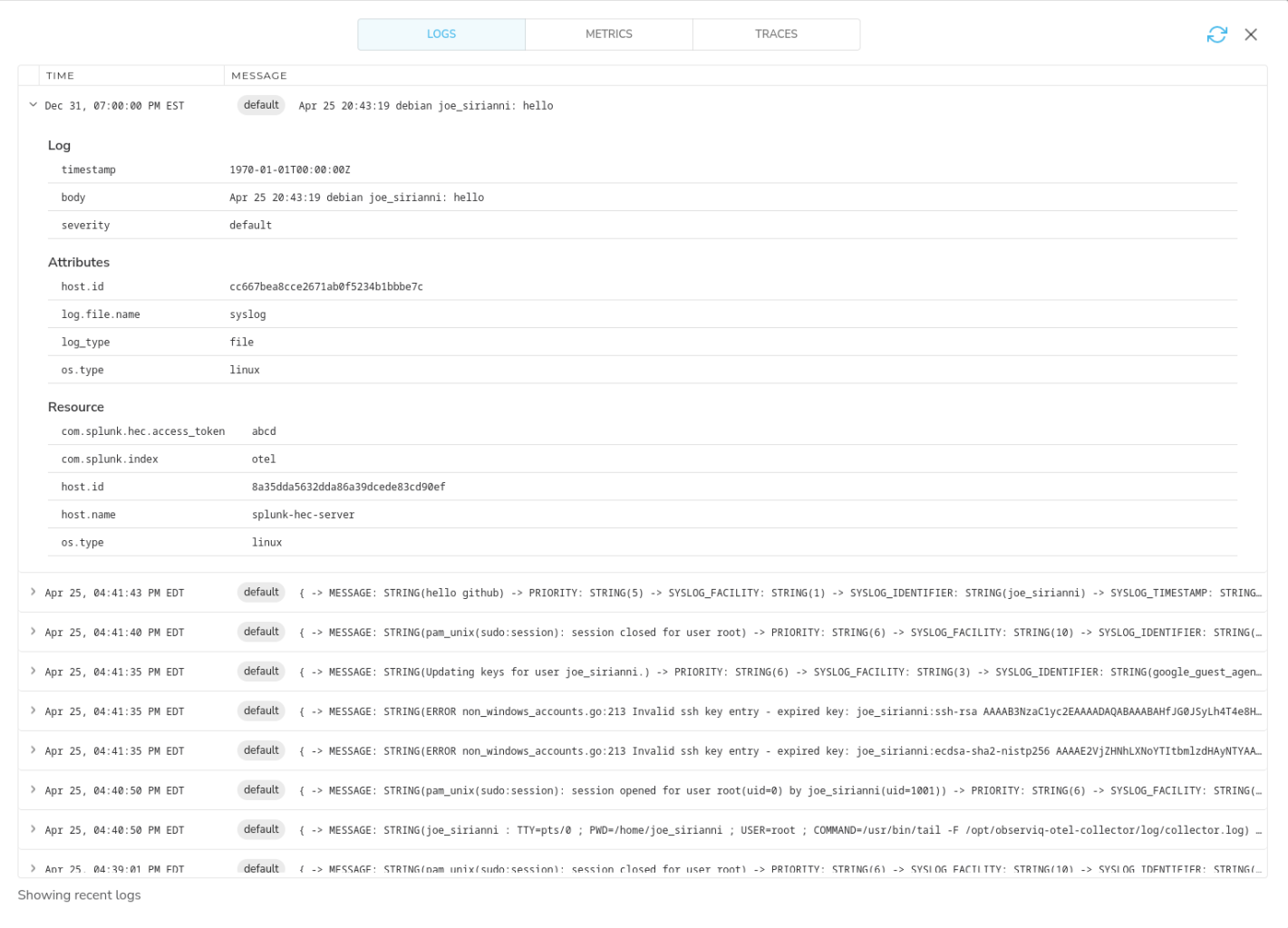

Once configured, incoming events will be displayed as logs like this:
